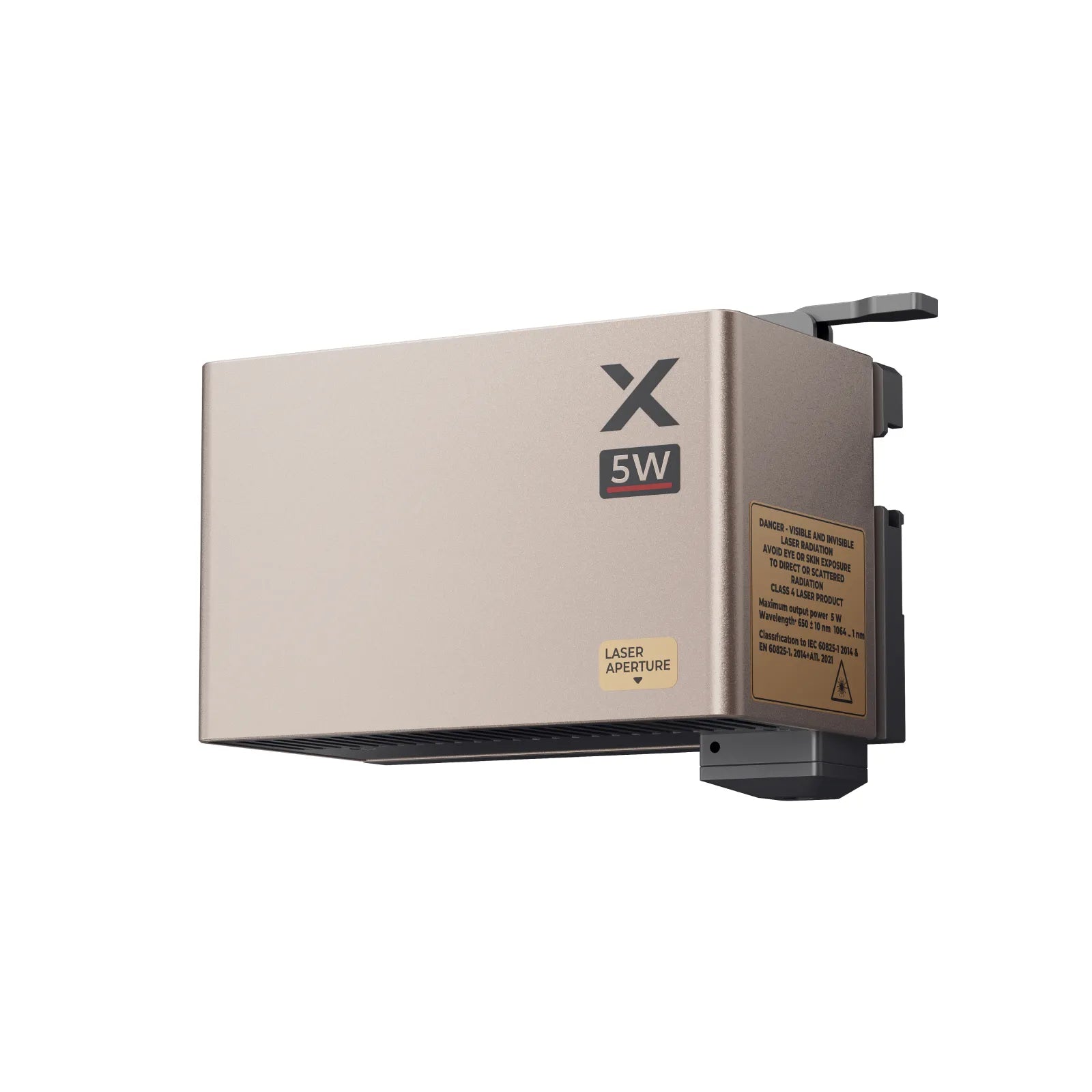

xTool 5W IR Laser Module for P3
Mark Metal Directly from Your xTool P3 - No Machine Swap Required
The xTool 5W IR Laser Module for P3 adds 1064nm infrared laser capability to your existing P3 CO₂ system. Switch between CO₂ cutting and IR metal marking without changing machines - install the module in minutes and engrave anodized aluminum, stainless steel, brass, and coated metals with precision.

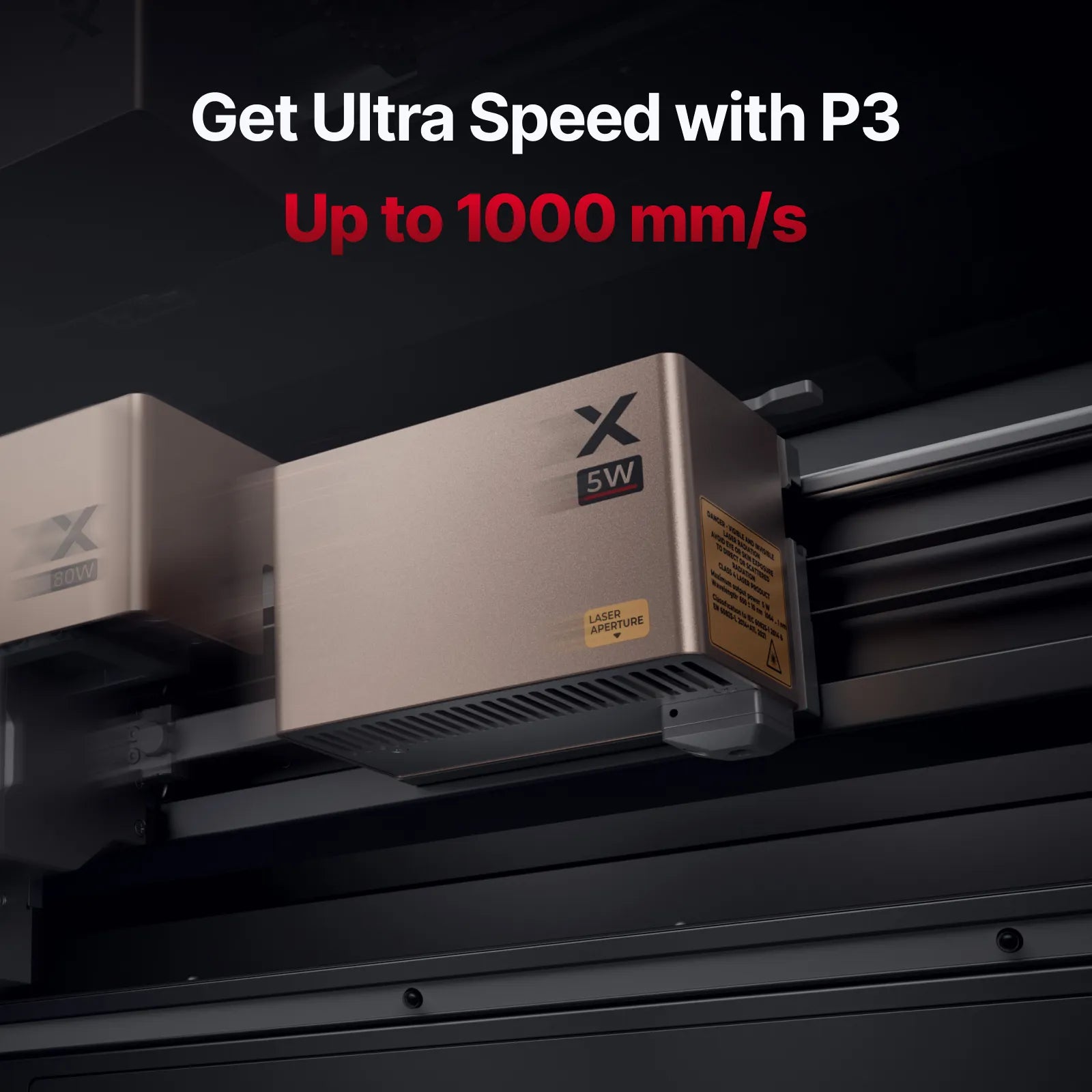

Designed to mount directly on the P3, this module draws power from the main unit and operates within the full 650mm × 426mm working area. It is the fastest way to add professional metal marking to a P3 workflow.
Quick Specs
| Spec | Details |
|---|---|
| Wavelength | 1064nm ± 1nm |
| Output Power | 5W |
| Pulse Width | 4ns |
| Repetition Rate | 25 – 30 KHz |
| Peak Power | 49 – 65 KW |
| Single Pulse Energy | >0.14 mJ |
| Focal Length | 49mm |
| Beam Waist | ≥3mm |
| Working Area | 650mm × 426mm |
| Laser Head Dimensions | 136.5mm × 94.5mm × 92.5mm |
| Laser Head Weight | 850g |
| Lifetime | 8,000 hours |
| Power Supply | Host power supply (powered by P3 main unit) |
| Cooling Method | Air cooling |
| Operating Temperature | 0 – 35°C |
| Storage Temperature | -10 – 60°C |
| Package Dimensions | 236mm × 184mm × 156mm |
| Package Weight | 1.5 kg |
| Compatible Machine | xTool P3 |
Why Add the IR Module to Your P3
CO₂ lasers excel at cutting and engraving wood, acrylic, and fabric — but the 10,600nm wavelength does not absorb efficiently into bare metals. Infrared fiber lasers at 1064nm are absorbed by metal surfaces, enabling deep, permanent marks on anodized aluminum, stainless steel, copper, brass, and coated metals.
With this module installed, the P3 becomes a dual-capability system: CO₂ for organic materials and IR for metals. Swap the module in and out in minutes — no tools required — and return to CO₂ cutting without any reconfiguration.

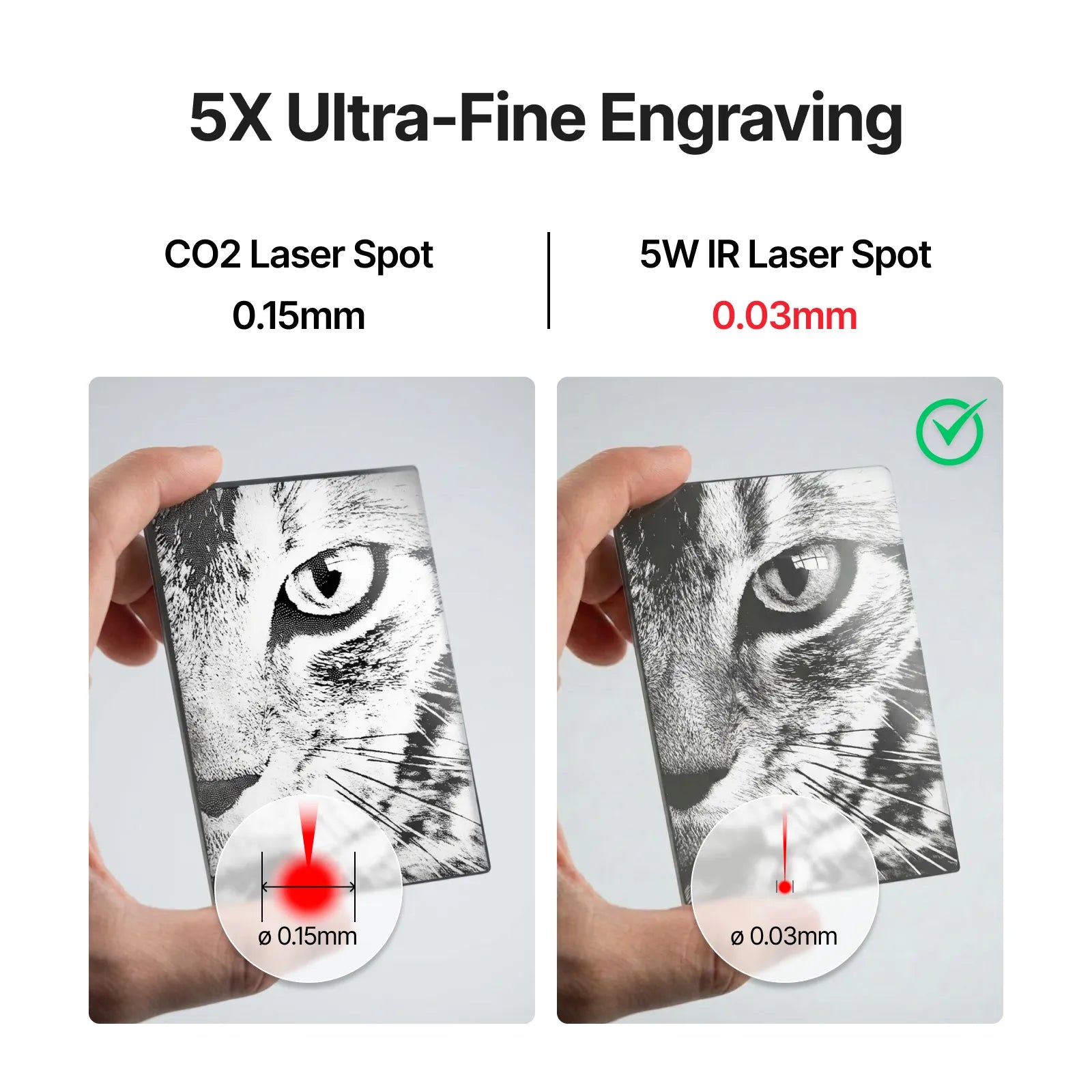

The nanosecond pulse width (4ns) and high peak power (up to 65 KW) produce fine detail marks at speed, making it suitable for production-volume product personalization, part marking, and awards engraving.

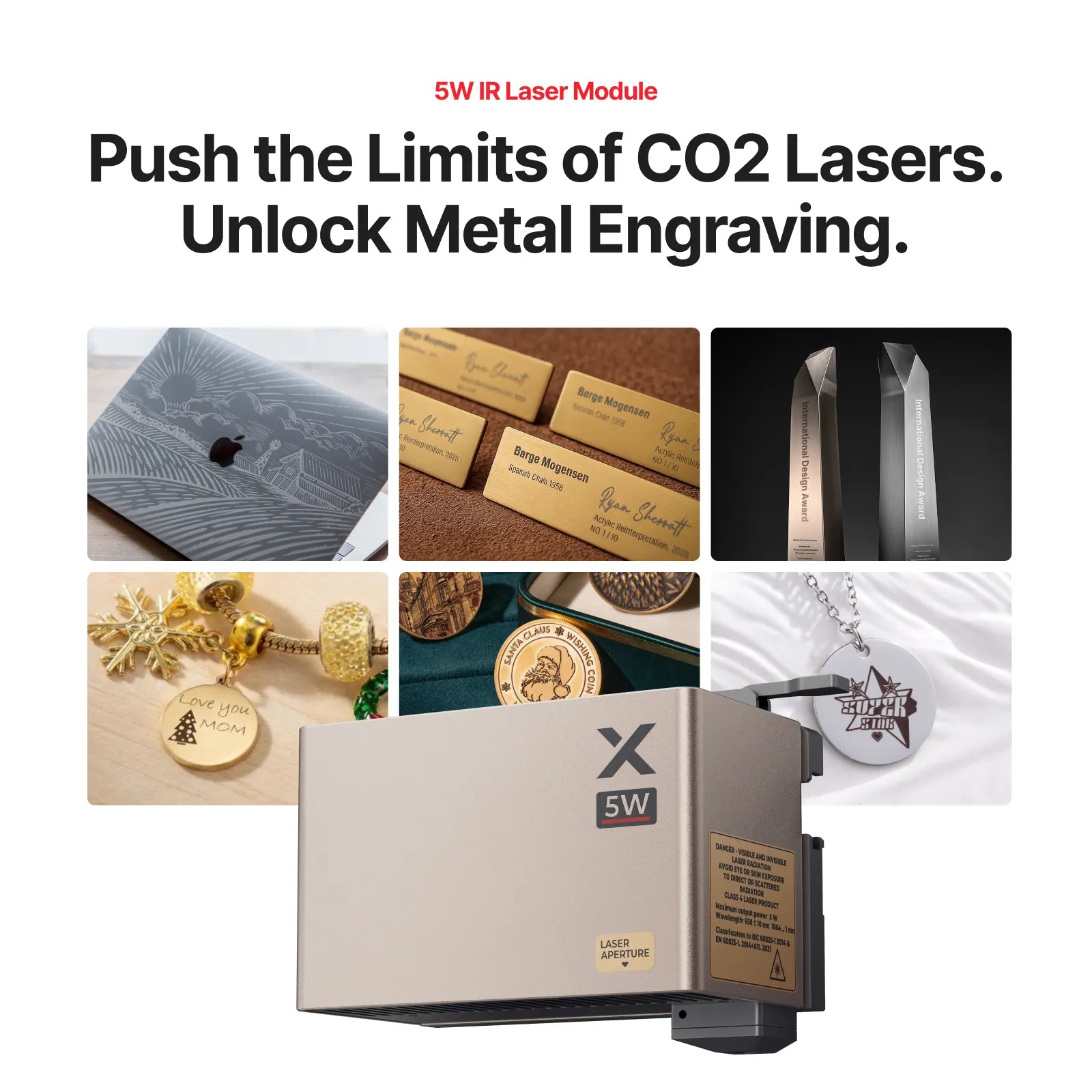

Compatible Materials
The 5W IR module marks and engraves: anodized aluminum, stainless steel, carbon steel, brass, copper, titanium, and coated or painted metal surfaces. It is not designed for cutting or for non-metal materials.

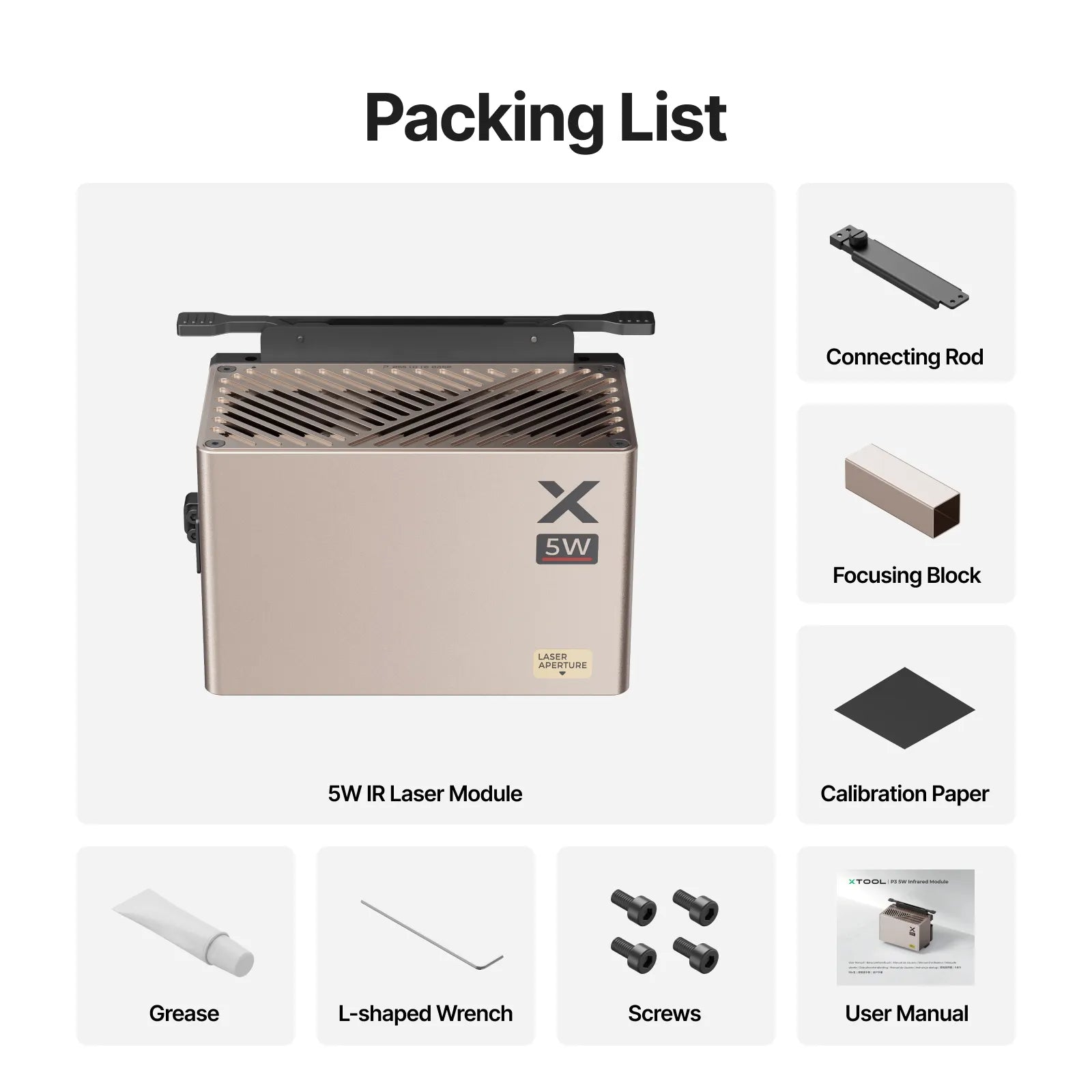

In the Box
1 x 5W IR Laser Module for P3
